Brand

Display Device

Display System	3 LCD system
Size of effective display area	0.59” (15.0 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels	3,072,000 (1280 x 800 x 3) pixels

Projection Lens

Focus	Manual
Zoom - Powered/Manual	Manual
Zoom - Ratio	Approx. x 1.03
Lens Shift	Manual
Throw Ratio	0.27:1 to 0.27:1

Light source

Type	Ultra high pressure mercury lamp
Wattage	225 W type
Screen size	65" to 110” (1.65 m to 2.79 m) (measured diagonally)

Light output

Lamp mode: High	2600 lm
Lamp mode: Standard	2000 lm
Lamp mode: Low	1700 lm

Contrast

Contrast ratio (full white / full black)

3000:1

Speaker

Speaker

16 W x 1 (monaural)

Display resolution

Computer signal input	Maximum display resolution: UXGA 1600 x 1200 dots*3
Video signal input	NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, The following items are available for digital signal (HDMI input) only; 1080/60p, 1080/50p

Keystone Correction

Vertical	48 Hz to 92 Hz
Horizontal	15 kHz to 92 kHz

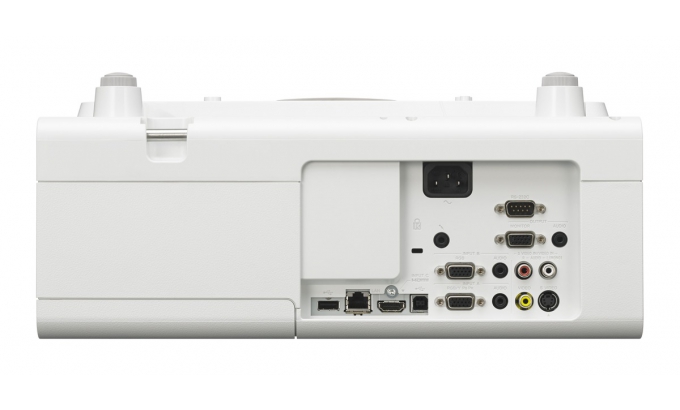

INPUT OUTPUT (Computer/Video/Control)

INPUT A	RGB / Y PB PR input connector: Mini D-sub 15-pin (female) Audio input connector: Stereo mini jack
INPUT B	RGB input connector: Mini D-sub 15-pin (female) Audio input connector: Stereo mini jack
INPUT C	HDMI input connector: HDMI 19-pin, HDCP support
S VIDEO IN	S video input connector: Mini DIN 4-pin Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN	Video input connector: Pin jack Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
IO Output	Monitor output connector*4: Mini D-sub 15-pin (female) Audio output connector*5: Stereo mini jack (variable out)
IO REMOTE	RS-232C connector: D-sub 9-pin (male)
IO LAN	RJ-45, 10BASE-T/100BASE-TX
IO USB	Type-A Type-B
MICROPHONE IN	Microphone input: Mini Jack

Acoustic Noise

Lamp mode: Low

28 dB

Dimension and Mass

Dimensions (W x H x D) (without protrusions)	Approx. 372 x 168 x 382 mm (14 21/32 x 5 7/16 x 15 1/32 inches
Mass	Approx. 6.0 kg (13 lb)

Others

Projector Power requirements	AC 100 V to 240 V, 3.2 A to 1.4 A, 50 Hz / 60 Hz
Remote commander	RS-232C connector: D-sub 9-pin (male)
Optional Lamp	LMP-E220
Wireless LAN module	IFU-WLM3
