Brand

Display Device

Display System	3 LCD system
Size of effective display area	0.59” (15 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels	3,072,000 (1280 x 800 x 3) pixels

Projection Lens

Focus	Manual
Throw Ratio	0.46:1

Light source

Type	Ultra high pressure mercury lamp
Wattage	210W type
Screen size	57” to 103” (1.45 m to 2.62 m) (measured diagonally)

Light output

Lamp mode: High	2600lm
Lamp mode: Standard	2100lm
Lamp mode: Low	1700lm

Contrast

Contrast ratio (full white / full black)

3000:01:00

Speaker

Speaker

16 W (monaural)

Display resolution

Computer signal input	Maximum display resolution: UXGA 1600 x 1200 dots*3
Video signal input	NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i

Keystone Correction

Vertical

+/- 7.5 deg

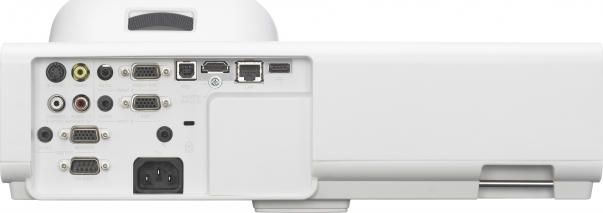

INPUT OUTPUT (Computer/Video/Control)

INPUT A	RGB / Y PB PR input connector: Mini D-sub 15-pin (female) Audio input connector: Stereo mini jack
INPUT B	RGB input connector: Mini D-sub 15-pin (female) Audio input connector: Stereo mini jack
INPUT C	HDMI input connector: HDMI 19-pin, HDCP support
S VIDEO IN	S Video input connector: Mini DIN 4-pin Audio input connector: Pin jack x2 (shared with VIDEO IN)
VIDEO IN	Video input connector: pin jack, Audio input connector: Pin jack x2 (shared with S VIDEO IN)
IO Output	Monitor output connector*4: Mini D-sub 15-pin (female) Audio output connector*5: Stereo mini jack (variable out)
IO REMOTE	RS-232C connector: D-sub 9-pin (male)
IO LAN	RJ-45, 10BASE-T/100BASE-Tx
IO USB	Type-A Type-B
MICROPHONE IN	Microphone input: Mini Jack

Acoustic Noise

Lamp mode: Low

30dB

Dimension and Mass

Dimensions (W x H x D) (without protrusions)	Approx. 365 x 138.7 x 310 mm (14 3/8 x 5 15/32 x 12 7/32 inches)
Mass	Approx. 4.4 kg (9 lb)

Others

Projector Power requirements	AC 100 V to 240 V, 3.2 A to 1.3 A, 50 Hz / 60 Hz
Remote commander	RM-PJ8
Optional Lamp	LMP-E212
Wireless LAN module	IFU-WLM3
