Video

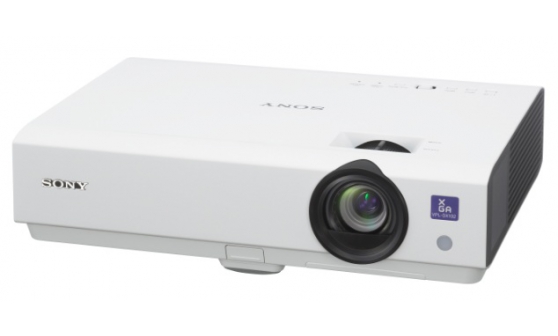

Sony VPL-DX102
by
  • High image quality 3LCD BrightEra™ natural and vivid colour images
  • Compact, lightweight and stylish design
  • Energy efficient with long-lasting lamp of 10,000 hours
Authorised Distributor
Two Years Warranty
Specifications
Brand
Display Device
Display System 3 LCD system
Size of effective display area 0.63" (16 mm) x 3 BrightEra LCD Panel, Aspect ratio: 4:3
Number of pixels 2,359,296 (1024 x 768 x 3) pixel
Projection Lens
Focus Manual
Zoom - Powered/Manual Manual
Zoom - Ratio Approx. x 1.2
Throw Ratio 1.47:1 to 1.77:1
Light source
Type Ultra high pressure mercury lamp
Wattage 210 W type
Screen size 30" to 300" (0.76 m to 7.62 m)(measured diagonally)
Light output
Lamp mode: High 2300 lm
Lamp mode: Standard 1800lm
Lamp mode: Low 1500lm
Contrast
Contrast ratio (full white / full black) 3000:01:00
Speaker
Speaker 1 W x 1 (monaural)
Display resolution
Computer signal input Maximum display resolution: UxGA 1600 x 1200 dots*3
Video signal input NTSC, PAL, SECAM,480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
Keystone Correction
Vertical +/- 30°
INPUT OUTPUT (Computer/Video/Control)
INPUT A RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
INPUT B HDMI input connector: HDMI 19-pin, HDCP support
VIDEO IN Video input connector: Pin jack
Acoustic Noise
Lamp mode: Low < 35 dB
Dimension and Mass
Dimensions (W x H x D) (without protrusions) Approx. 315 x 75 x 230.5 mm (12 13/32 x 2 15/16 x 9 1/16 inches)
Mass Approx. 2.5 kg (5.5 lb)
Others
Projector Power requirements AC 100 V to 240 V, 3.1 A to 1.4 A, 50 Hz / 60 Hz
Remote commander RM-PJ8
Optional Lamp LMP-D213
Overview
2,300 lumens XGA Desktop projector
Economical desktop projector for office and classroom, offering high performance and superior ease of use The VPL-DX102 is packed with features optimised for the business and education markets at a reasonable price. The projector is compact and lightweight, with its simple design making it very easy to set up. Sony 3LCD BrightEra™ panel technology provides bright and colourful projection. Plenty of interfaces allow easy connection, while a choice of Picture Modes optimises viewing with any source – slide presentations, PC documents, pictures or videos. There’s a range of smart energy-saving features built in, including auto power saving function. And with a recommended lamp replacement time of 10,000 hours, downtime and maintenance costs are minimised.
Features
Compact, lightweight and stylish design
The VPL-DX102 has a compact and lightweight body with a small footprint of approximately 315 x 75 x 230.5 mm (12 13/32 x 2 15/16 x 9 1/16 inches) and a light weight of approximately 2.5 kg (5.4 lb). This compact, lightweight projector is convenient for carrying around a meeting room or classroom.
Energy efficient with long-lasting lamp
The lamp driver optimally controls the wattage of the lamp and achieves a long-lasting lamp time of 10,000* hours. The recommended lamp replacement time is extended by 43%, compared to the previous model. *Lamp mode: low, Complies with IEC61947 standard.
Advanced energy-saving features
Advanced lamp technology enables robust energy-saving features. For example, greater brightness control in Auto Light Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Lamp Mode automatically adjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimise energy consumption.
High image quality 3LCD BrightEra images
XGA (1024 x 768) 4:3 screen resolution, 3LCD BrightEra natural and vivid colour images, plus various Picture Modes for optimising image quality, make the projector one of the best in its class. Thanks to the optical system projecting three basic colours constantly, the projector offers excellent light efficiency, ensuring colourful and bright images. Sony's BrightEra panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability. High colour reproducibility is important especially when using colourful content, such as materials used in classrooms.
Various picture modes
The projector has six available picture modes for correct picture quality: Dynamic, Standard, Presentation, Blackboard, Game, and Cinema. With six picture modes and three brightness modes combined, the user can select the most suitable picture / brightness combination according to the picture source and environment, to create the optimal image.
Accessories

Supplied accessories

Remote commanderRM-PJ8

Optional Accessories

Optional LampLMP-D213
