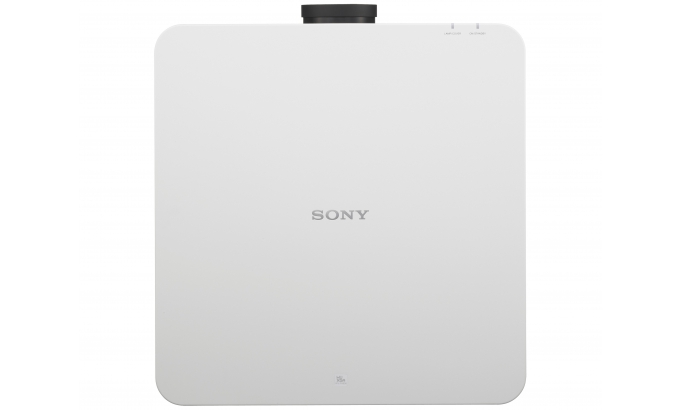

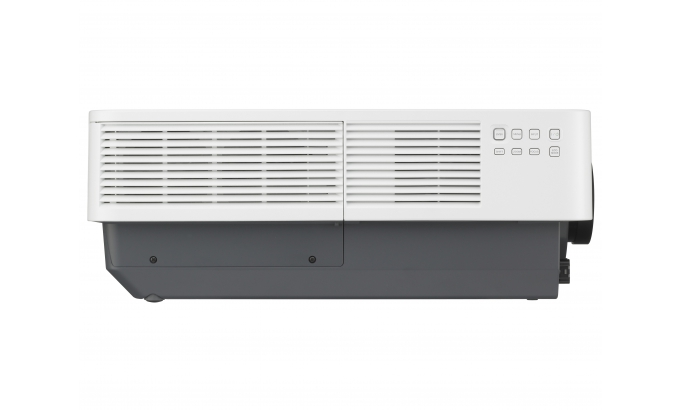

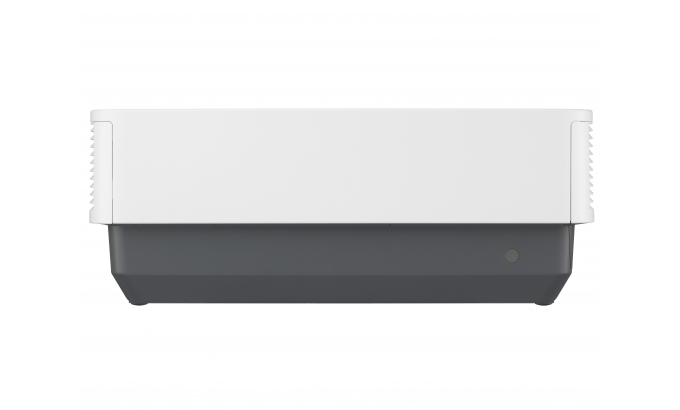

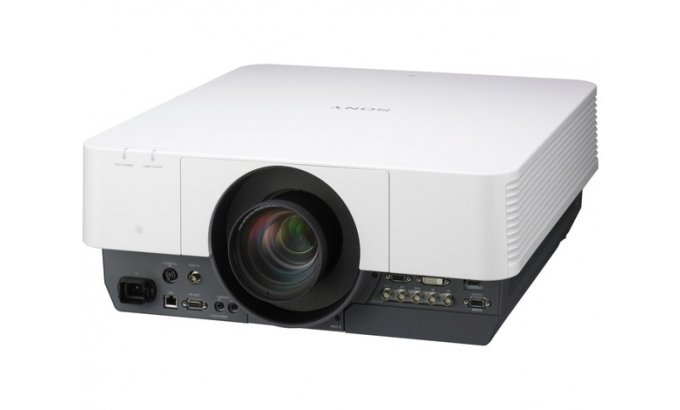

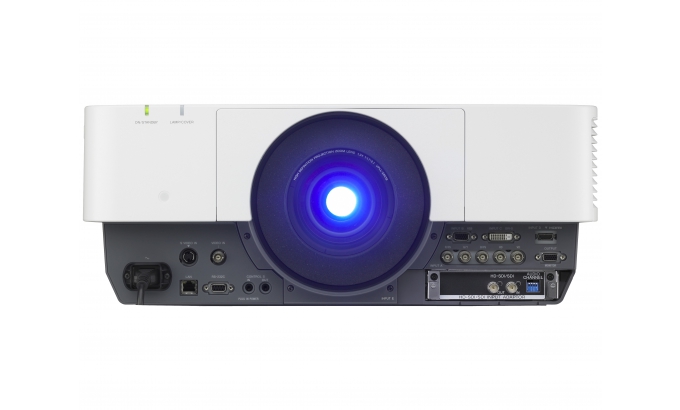

Sony VPL-FH500L
by
  • 7,000 lumens WUXGA 3LCD Higher Installation projector
  • Ultra high brightness and low maintenance - great performance for any environment.
Authorised Distributor
Three Years Warranty
Specifications
Brand
Display Device
Display System 3 LCD system
Size of effective display area 0.95” (24.1 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels 6,912,000 (1920 x 1200 x 3) pixels

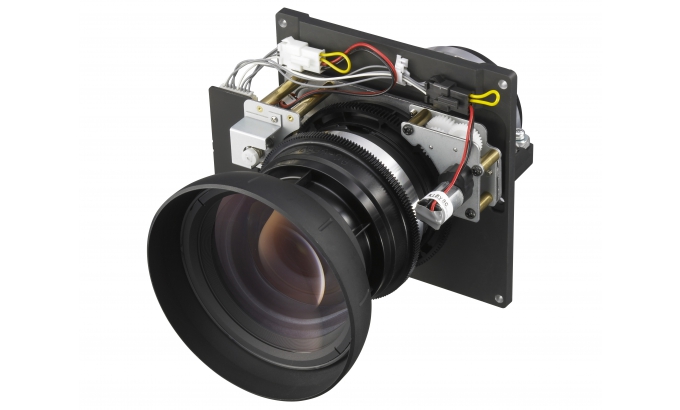

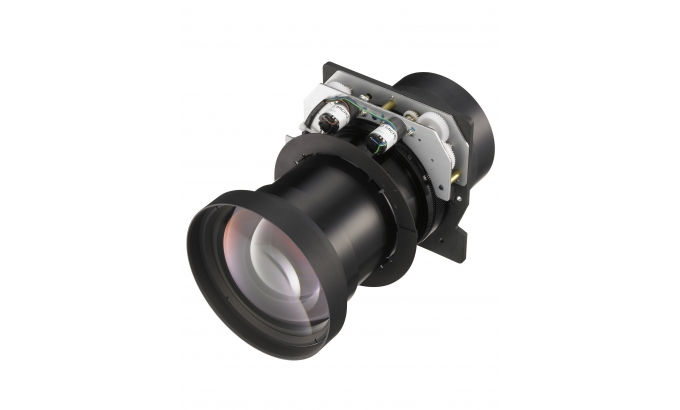

Projection Lens
Focus Powered / Manual (Depend on lens)
Zoom - Powered/Manual Powered / Manual (Depend on lens)
Lens Shift Powered / Manual (Depend on lens)
Light source
Type Ultra high pressure mercury lamp
Wattage 330 W type
Screen size 40” to 600” (1.02 m to 15.24 m) (measured diagonally) (Depend on lens)
Light output
Lamp mode: High 7000 lm
Lamp mode: Standard 5600 lm
Contrast
Contrast ratio (full white / full black) 2500: 1
Display resolution
Computer signal input Maximum display resolution: UXGA 1600 x 1200 dots*3
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p, 1080/30p*4
Keystone Correction
Vertical 47 Hz to 93 Hz
Horizontal 14 kHz to 93 kHz
INPUT OUTPUT (Computer/Video/Control)
INPUT A RGB / Y PB PR input connector: 5BNC (female)
INPUT B RGB input connector: Mini D-sub 15-pin (female)
INPUT C DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
INPUT D HDMI input connector: HDMI 19-pin, HDCP support
S VIDEO IN S-video input connector: Mini DIN 4-pin
VIDEO IN Video input connector: BNC
IO Output Monitor output connector*5: Mini D-sub 15-pin (female)
IO REMOTE RS-232C connector: D-sub 9-pin (female)
IO LAN RJ-45, 10BASE-T/100BASE-TX
Acoustic Noise
Lamp mode: Low 35 dB
Dimension and Mass
Dimensions (W x H x D) (without protrusions) Approx. 530 x 204 x 545 mm (20 7/8 x 8 1/32 x 21 15/32 inches)
Mass Approx. 20 kg (44 lb)
Others
Projector Power requirements AC 100 V to 240 V, 4.8 A to 2.0 A, 50 Hz / 60 Hz
Remote commander RM-PJ19
Optional Lamp LMP-F330
