Brand

Display Device

Display System	3 LCD system
Size of effective display area	0.76”(19.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels	6,912,000 (1920 x 1200 x 3) pixels

Projection Lens

Focus	Manual
Zoom - Powered/Manual	Manual
Zoom - Ratio	Approx. x 1.6
Lens Shift	Manual
Throw Ratio	1.39:1 to 2.23:1

Light source

Type	Ultra high pressure mercury lamp
Wattage	330 W type
Screen size	40” to 600” (1.02 m to 15.24 m) (measured diagonally)

Light output

Lamp mode: High	4300 lm
Lamp mode: Standard	3400 lm

Contrast

Contrast ratio (full white / full black)

2000: 1

Display resolution

Computer signal input	Maximum display resolution: 1920 x 1200 dots *4
Video signal input	NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p

Keystone Correction

Vertical	47 Hz to 93 Hz
Horizontal	14 kHz to 93 kHz

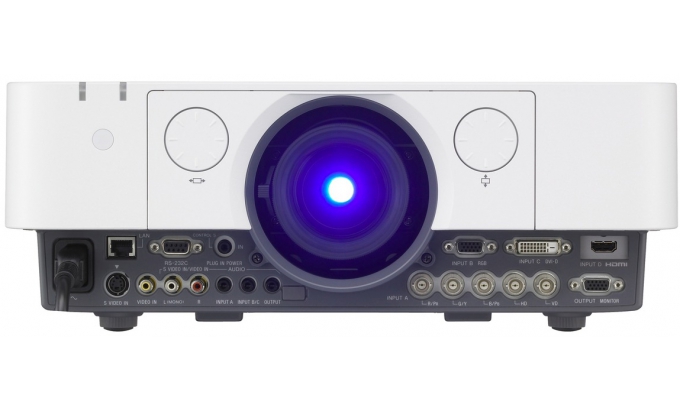

INPUT OUTPUT (Computer/Video/Control)

INPUT A	RGB / YPbPr input connector: 5BNC (female) Audio input connector: Stereo mini jack
INPUT B	RGB input connector: Mini D-sub 15-pin (female) Audio input connector: Stereo mini jack (shared with INPUT C)
INPUT C	DVI-D input connector: DVI-D 24-pin (Single link), HDCP support Audio input connector: Stereo mini jack (shared with INPUT B)
INPUT D	HDMI input connector: HDMI 19-pin, HDCP support
S VIDEO IN	S video input connector: Mini DIN 4-pin Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN	Video input connector: Pin jack Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
IO Output	Monitor output connector*5: Mini D-sub 15-pin (female) Audio output connector*6: Stereo mini jack (variable out)
IO REMOTE	RS-232C connector: D-sub 9-pin (female)
IO LAN	RJ-45, 10BASE-T/100BASE-TX
IR IN	Control S input connector: Stereo mini jack

Acoustic Noise

Lamp mode: Low

30 dB

Dimension and Mass

Dimensions (W x H x D) (without protrusions)	Approx. 390 x 134 x 463 mm (15 11/32 x 5 9/32 x 18 7/32 inches)
Mass	Approx. 8.3 kg (18 lb)

Others

Projector Power requirements	AC 100 V to 240 V, 4.0 A to 1.6 A, 50/60 Hz

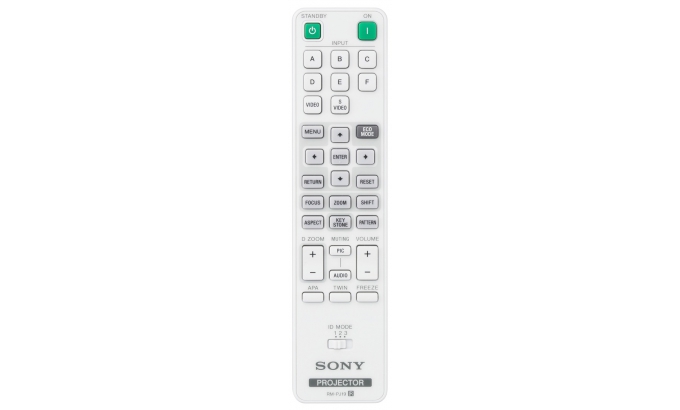

Remote commander	RM-PJ19

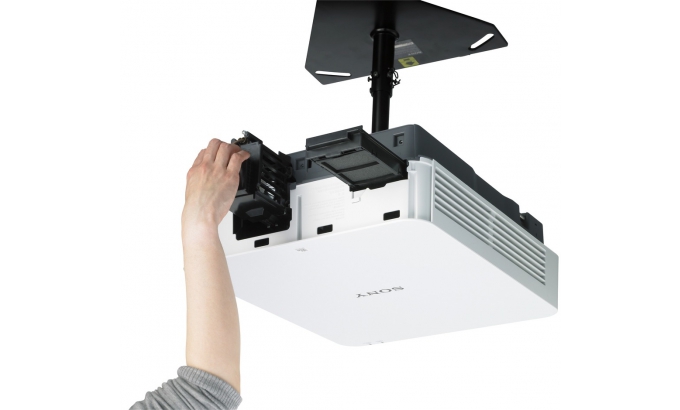

Optional Lamp	LMP-F272
