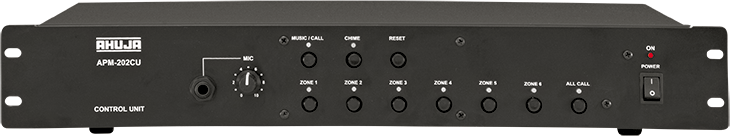

Ahuja APM-202CU
by
  • Rack mounting switcher / control unit
  • Works with APM-201RM and upto 2 amplifiers to form a 6 zone zonal paging system
  • Multi level priority and switchable background music.
  • 6 Zone Switcher / Paging Control Unit for use with APM-201RM.
  • 6 Zone Selector switches, plus ALL CALL switch.
  • Provision for two 100V input signals, one for speech and one for background music.
  • Priority of speech over background music.
Authorised Dealer
buy now inquire now
Specifications
Brand
Dimension and Mass
Dimensions W483 x H75 x D300 mm
Weight 4.8kg
Input/Output/Control
Input 3 x APM-201RM (1V/10k balanced), 1 x Mic (1mV/4.7k), Speech Amp (100V), Music Amp (100V), Alarm (100mV).
Technical Features
Power Requirement AC 220-240V, 50/60Hz; DC 24V (2 x 12V Car Battery)
Controls Mic Level, Chime level, Alarm level
Others
Switches 6 Zone Selector switches, All Call, Chime, Reset, Music/Call Selector, Power ON/OFF.
